Fender 1966 Jaguar Electric Guitar – Sunburst Finish – All Original!

Fender 1966 Jaguar Electric Guitar – Sunburst Finish – All Original!


Out of stock

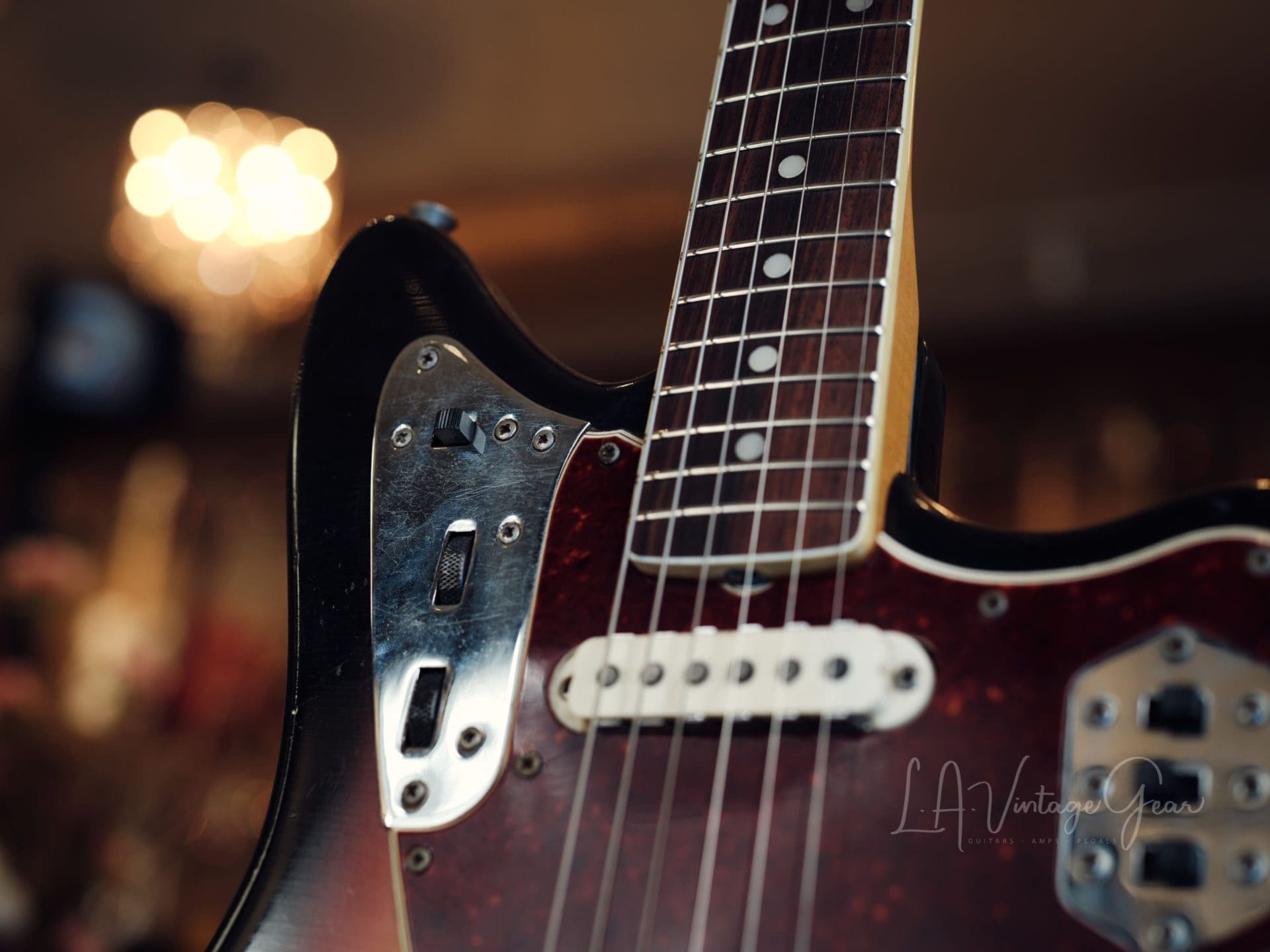

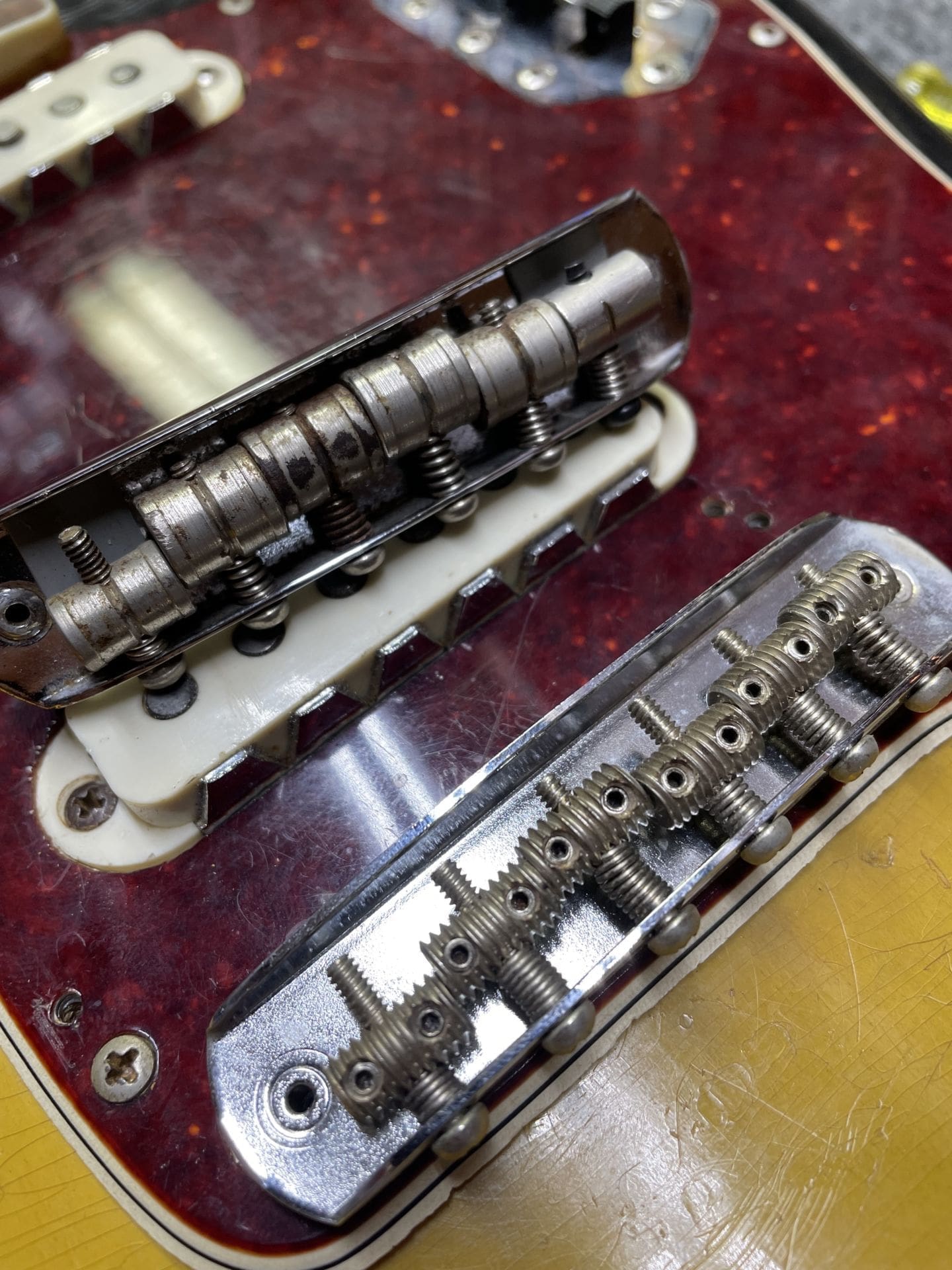

Here's a Vintage Fender 1966 Jaguar in a Sunburst Finish with it's Original Hardshell Case. Bridge was replace but the Original Bridge is included (as shown in pics) This is guitar plays & sounds great and is in Very Good Condition.

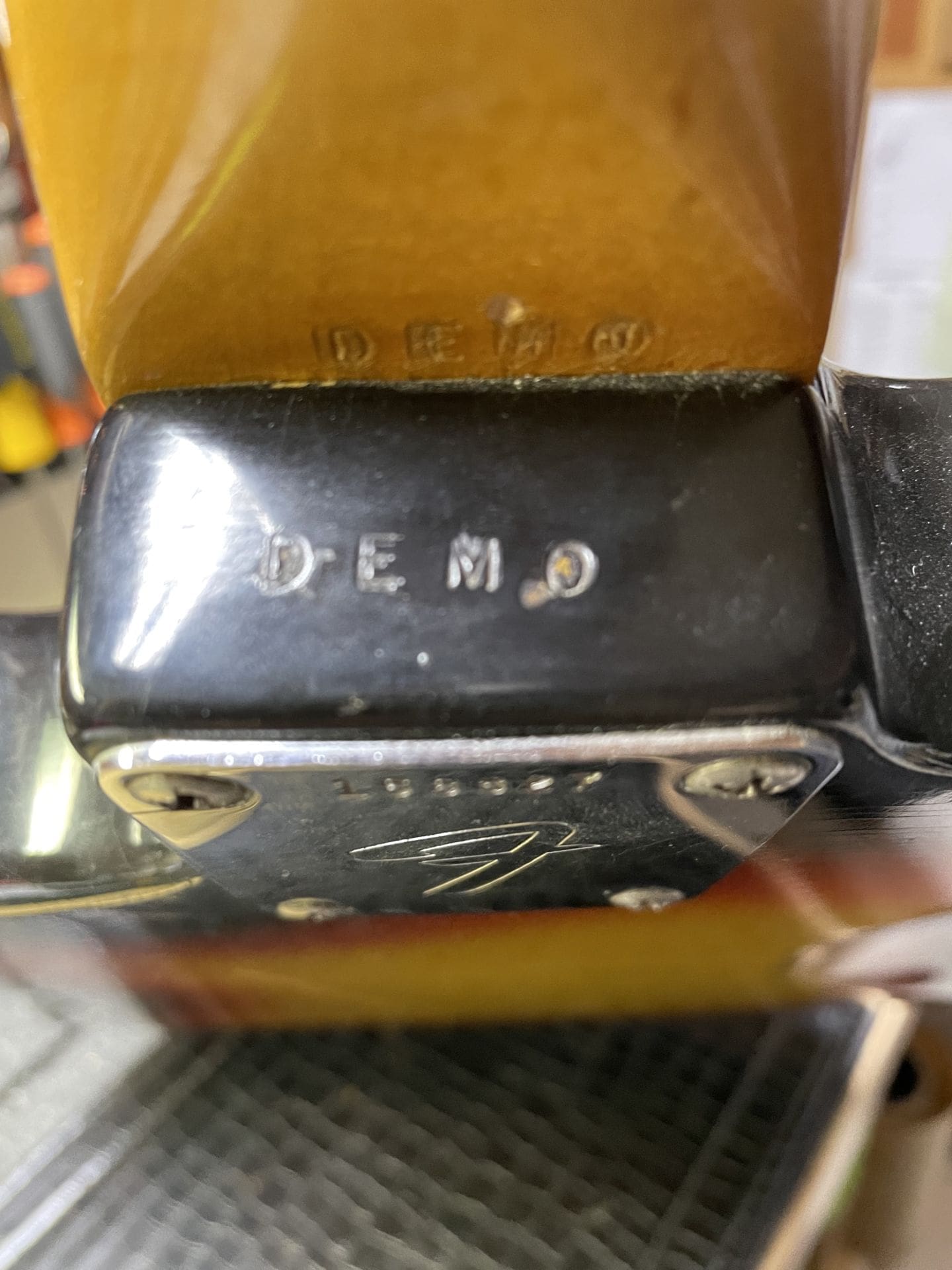

Note 'Demo' marking on neck heel (in photos).


The Fender Jaguar was introduced as a high-end model guitar four years after the Jazzmaster. Though similar to the Jazzmaster in its offset body and lead/rhythem circuits controls, the Jaguar differed in two key ways. For one, the Jaguar used a shorter 24-inch scale length compared to the 25 1/2-inch of most Fender guitars. Additionally, the Jaguar used two thinner single-coil pickups compared to the feedback-prone soapbox pickups of the Jazzmaster. The Jaguar was not as popular as the Telecaster or Strat in its initial run, but has found some popularity with punk, grunge and indie rockers since.

Years of Production: 1962 - 1974

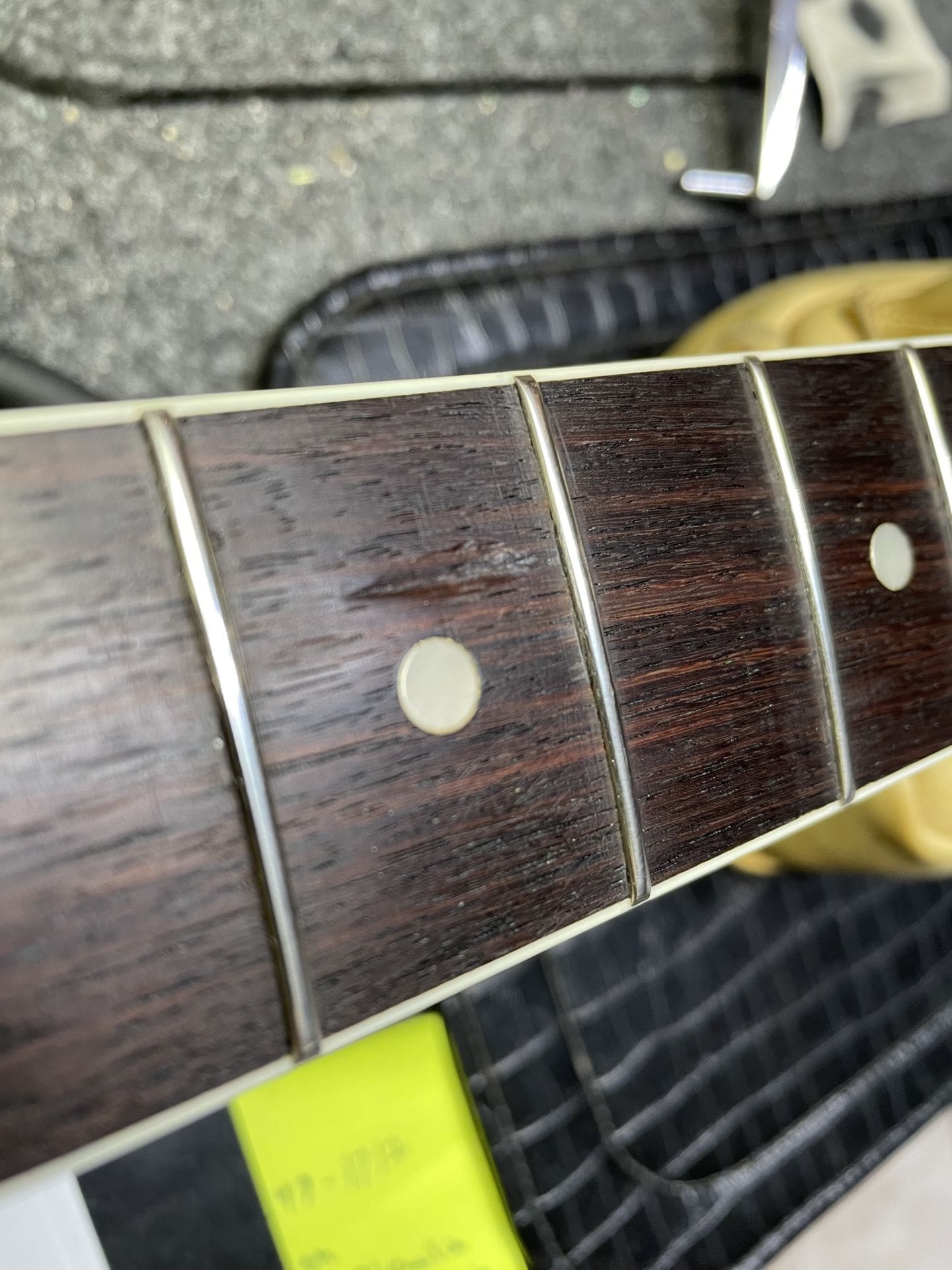

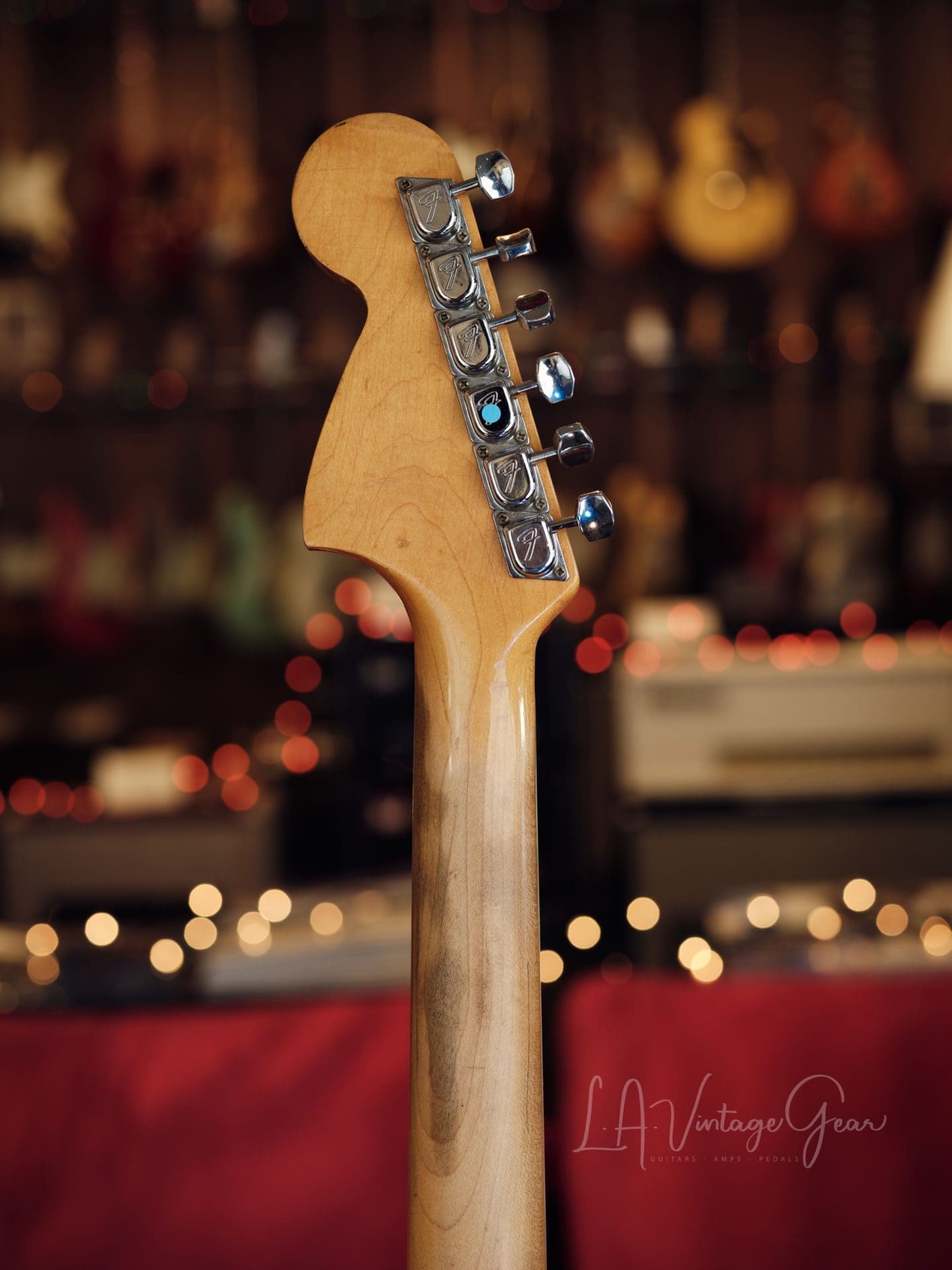

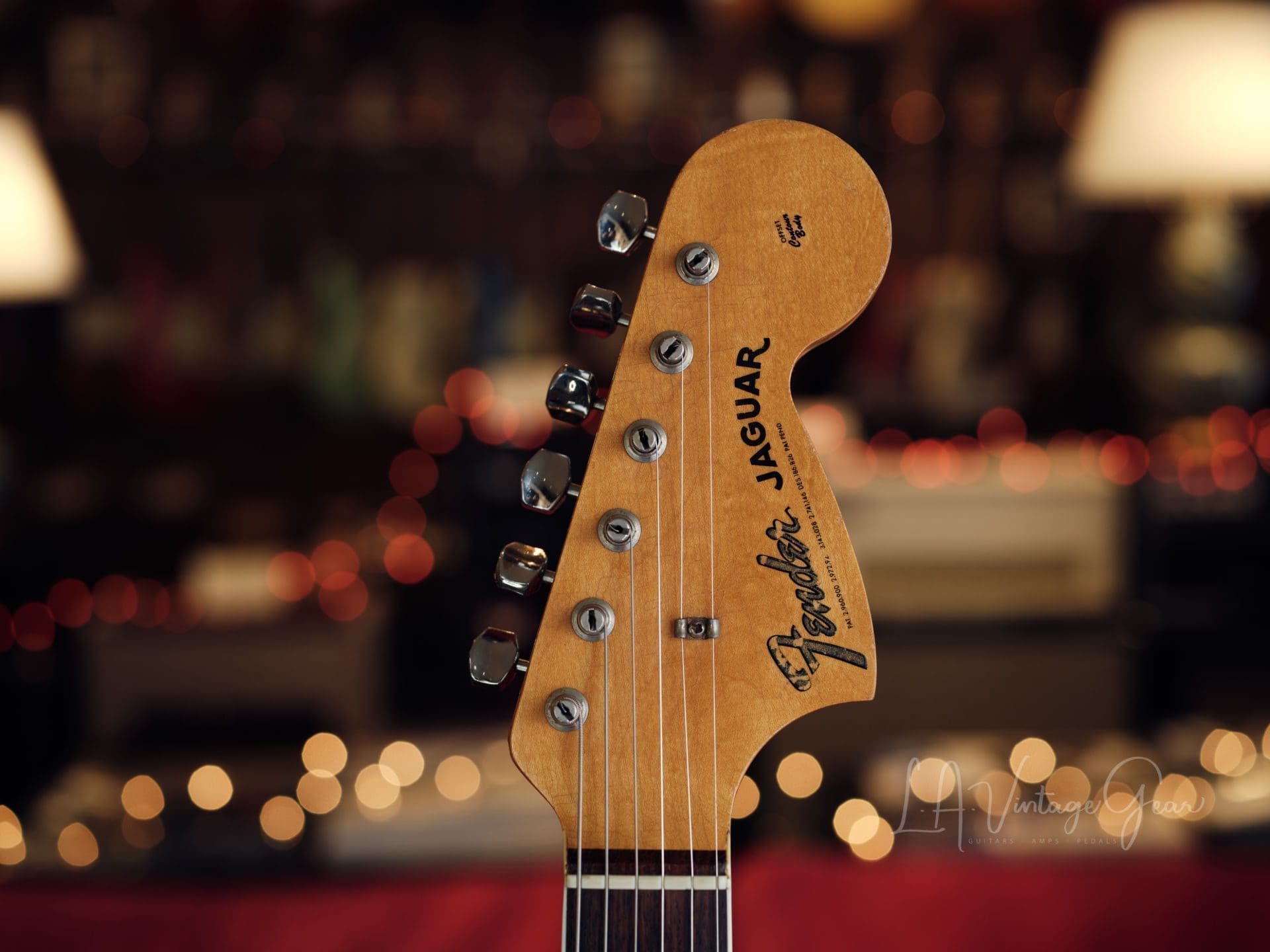

Unique to this Year: By 1966, Fender adds white binding to the fretboard of the Jaguar. Tuners also change to F-style tuners.

Body Style: Offset Solid Body

Wood Composition: Alder body, Maple neck with veneer Rosewood fingerboard

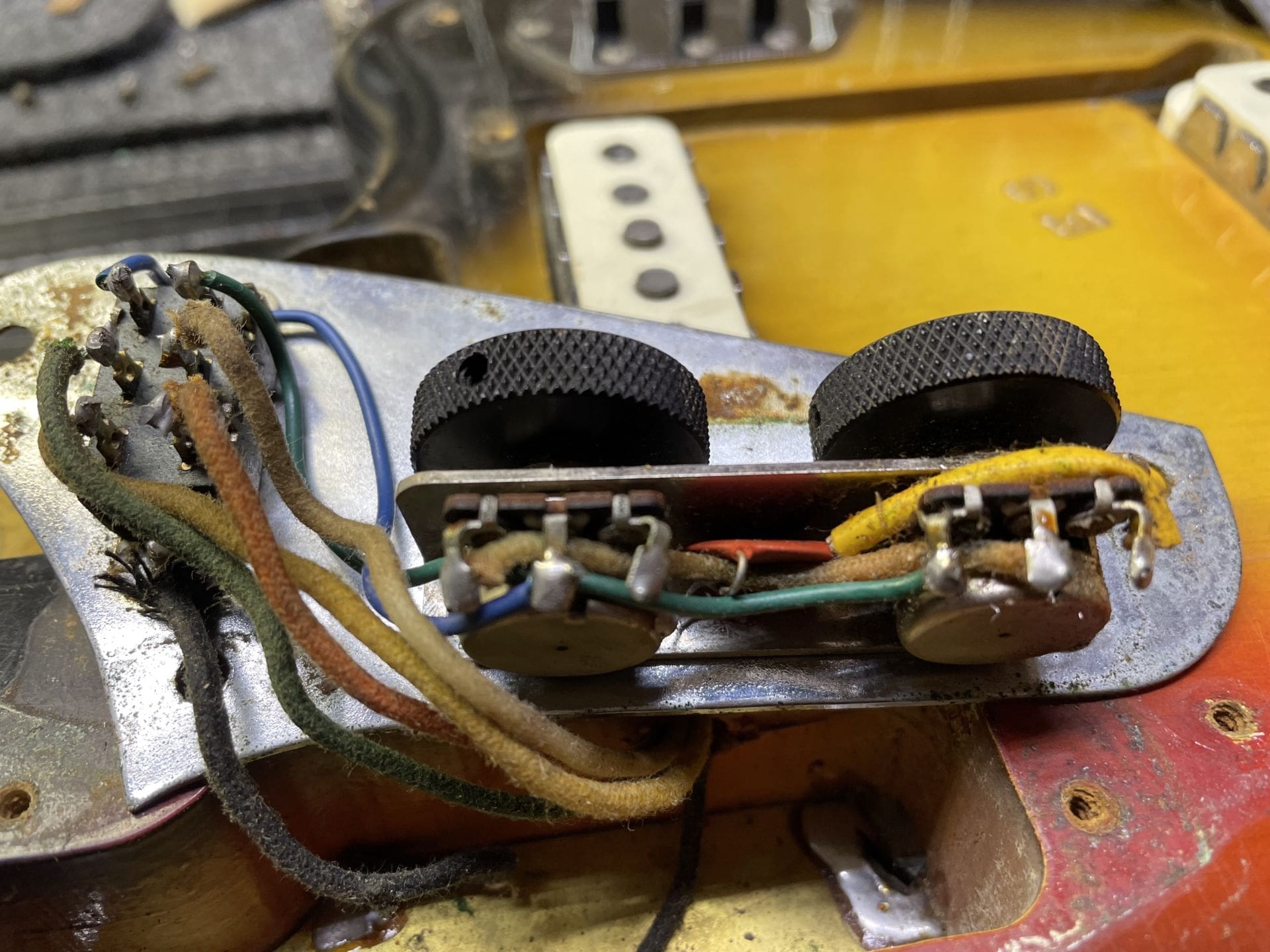

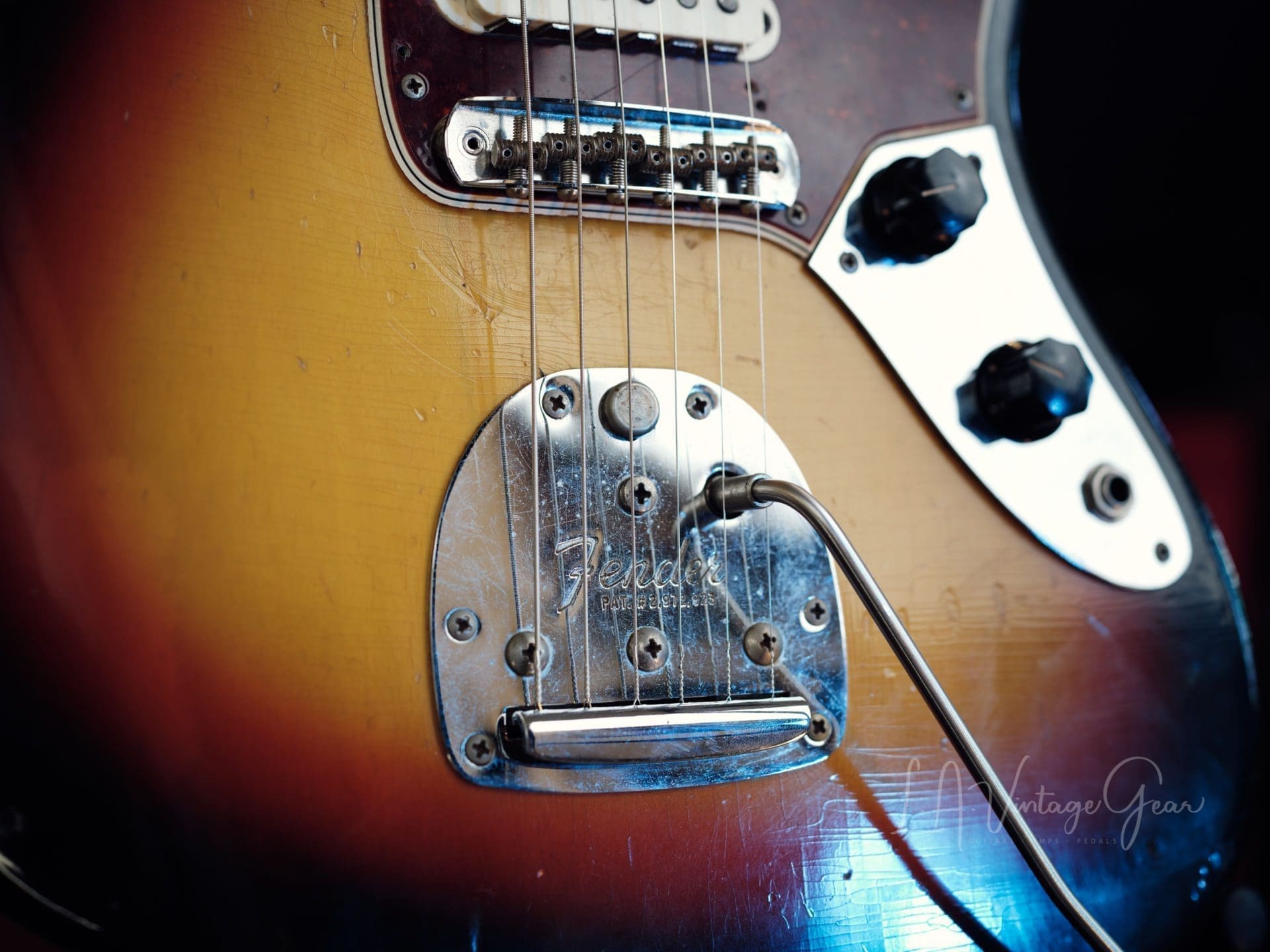

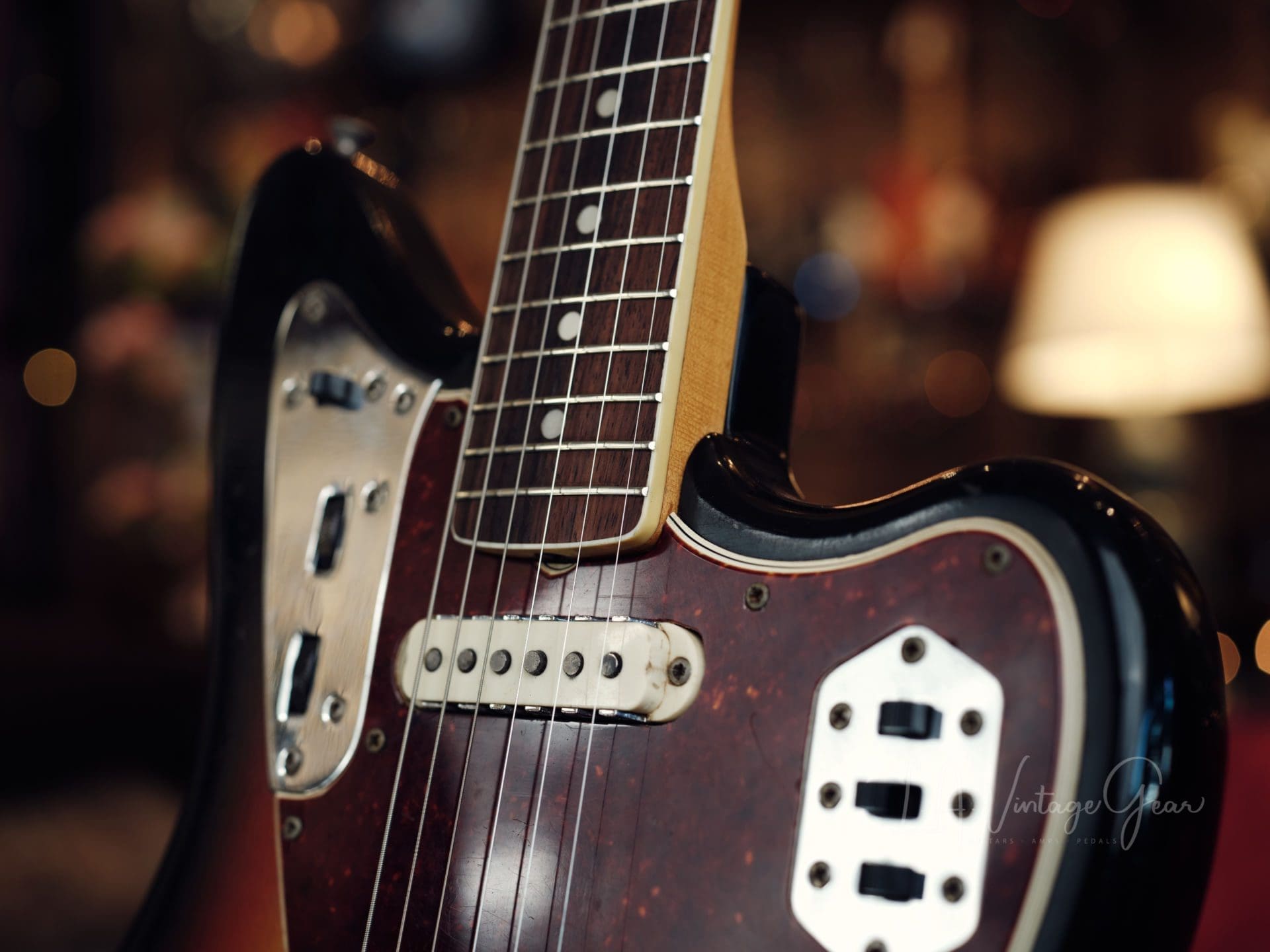

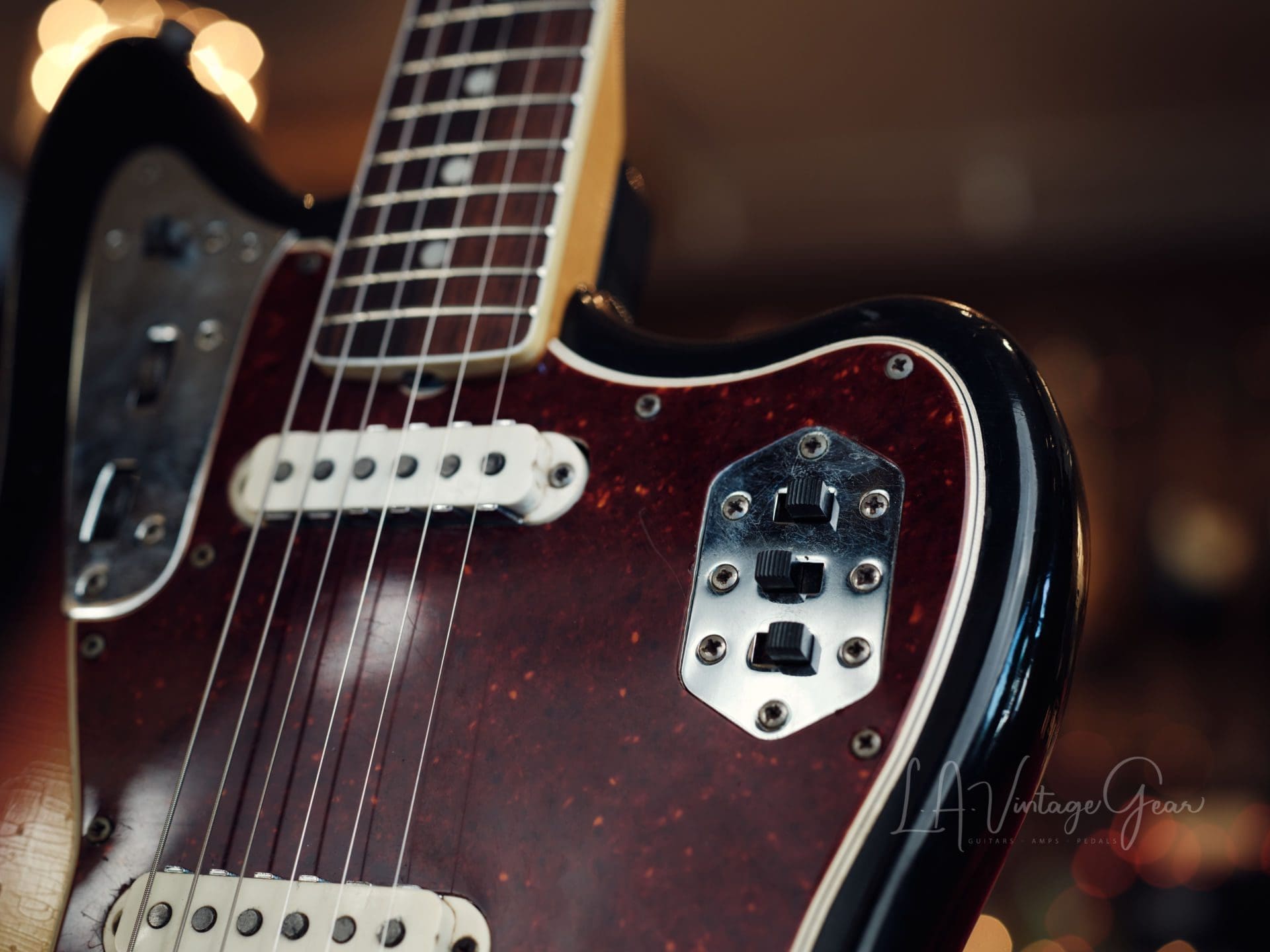

Design Elements: Bolt-on neck, dot inlays, 2 single-coil pickups with notched side-plates, individual pickup selectors, 24-inch scale length, treble and bass roll knobs, floating tremolo system, lead/rhythm circuit switch

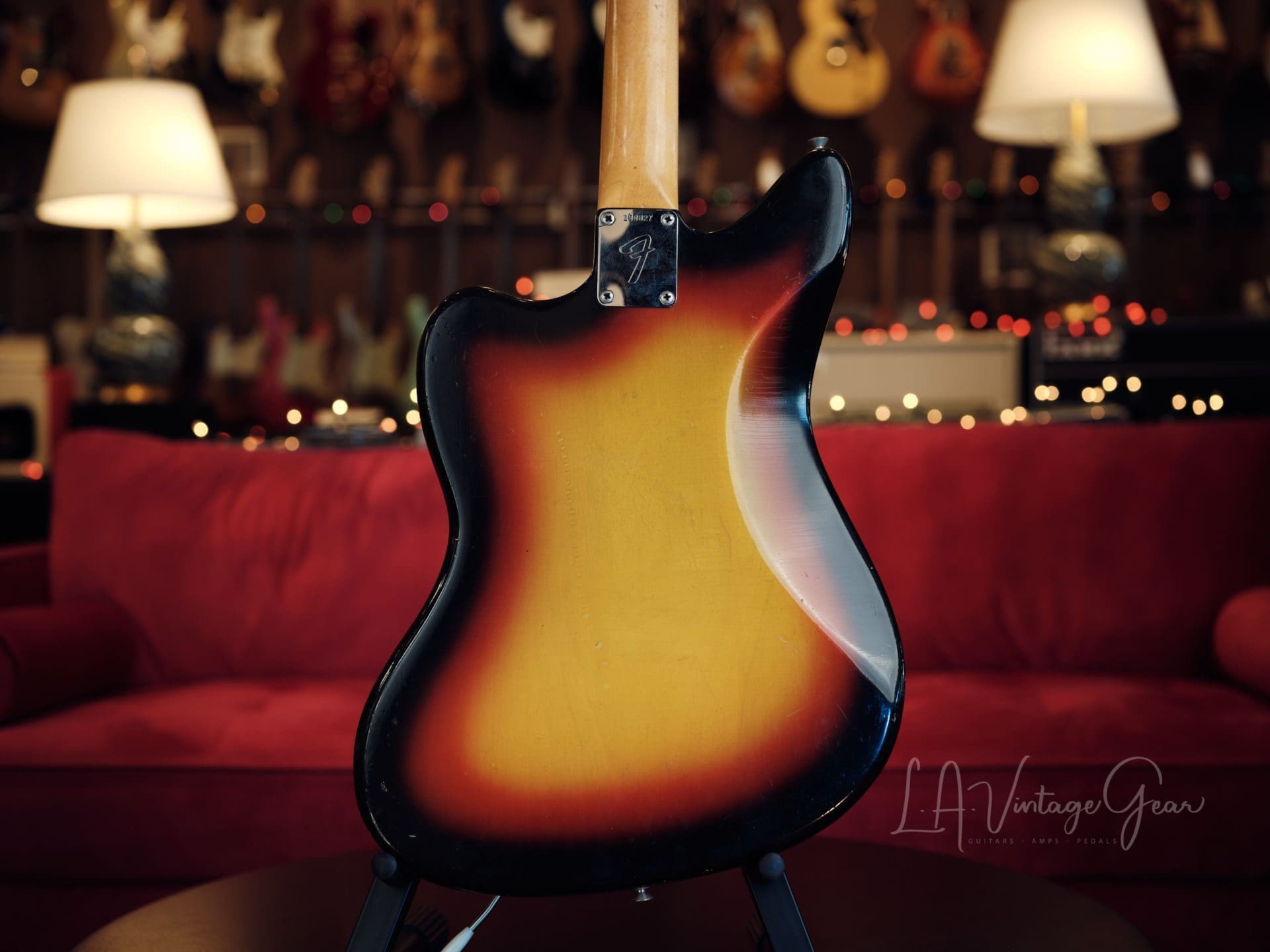

Finish Specifications: Sunburst is the most common finish for vintage Jaguars.

Notable Players:  Kurt Cobain, Johnny Marr, Carl Wilson


Serial# : 158827Weight : 8.21 lbs

Nut  Width : 1 5/8”

Neck Depth@1st : .844”

Neck Depth@12th : .938"

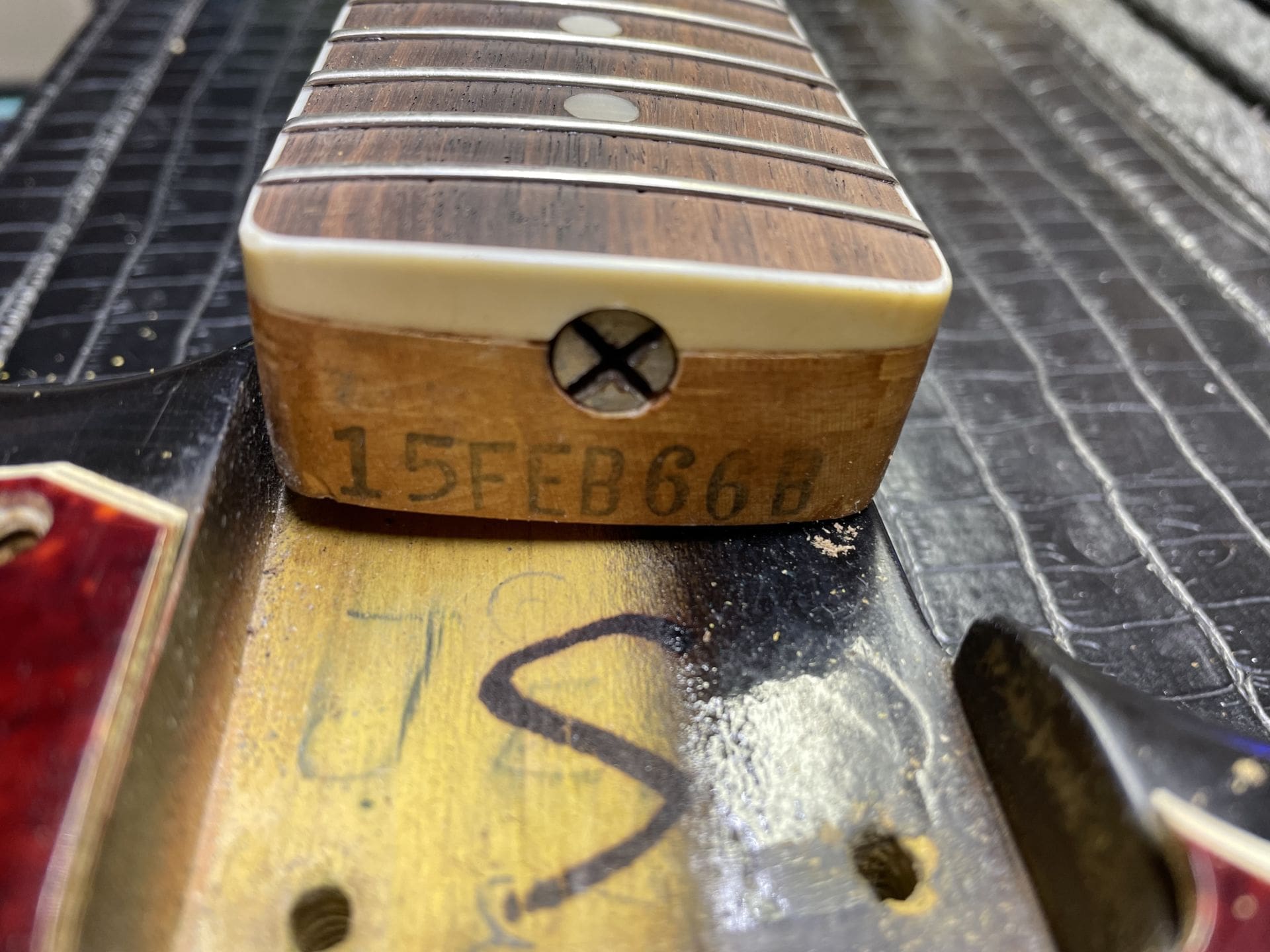

Neck stamp = Feb 66

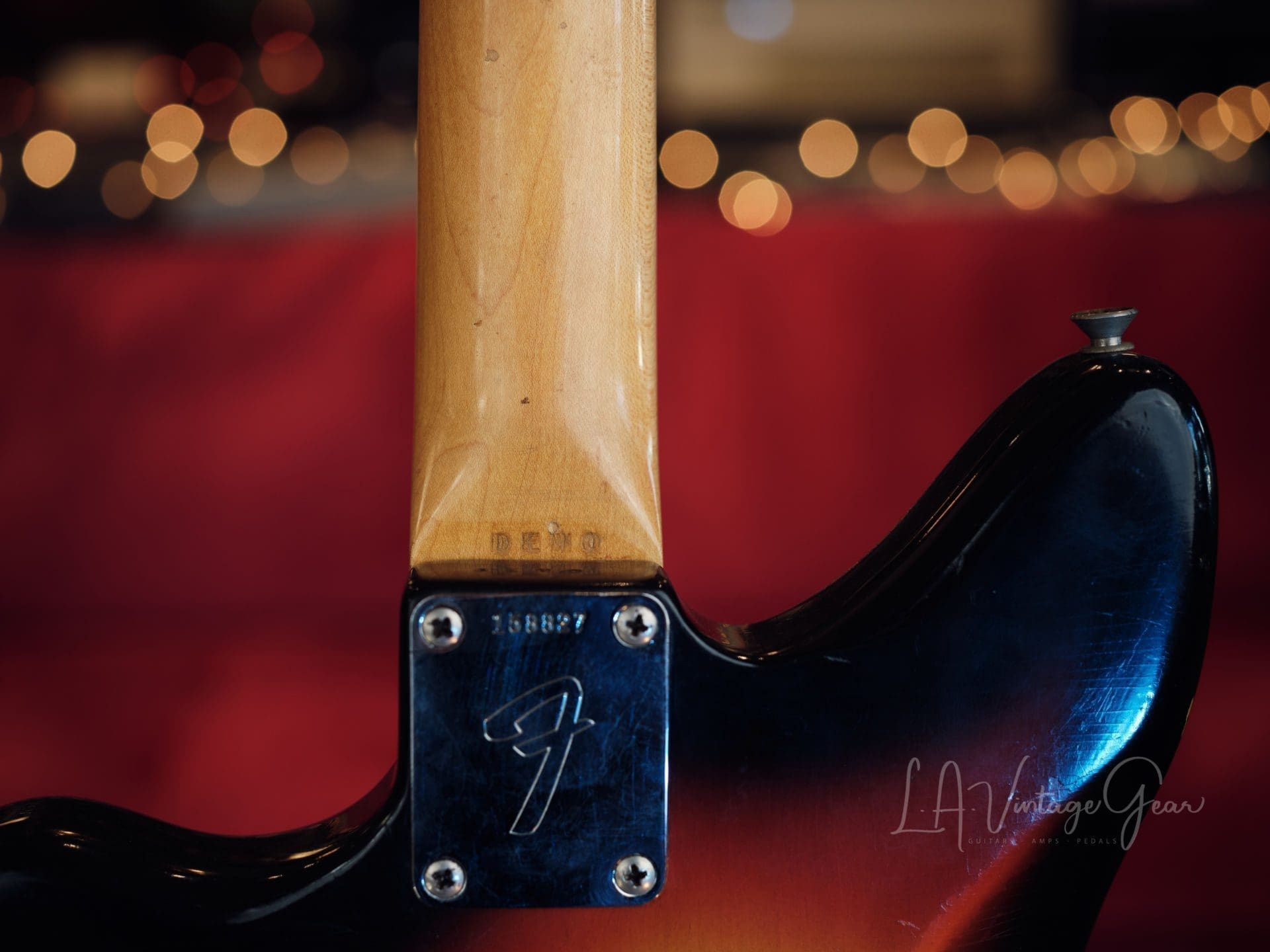

Plate Stamp = 158827

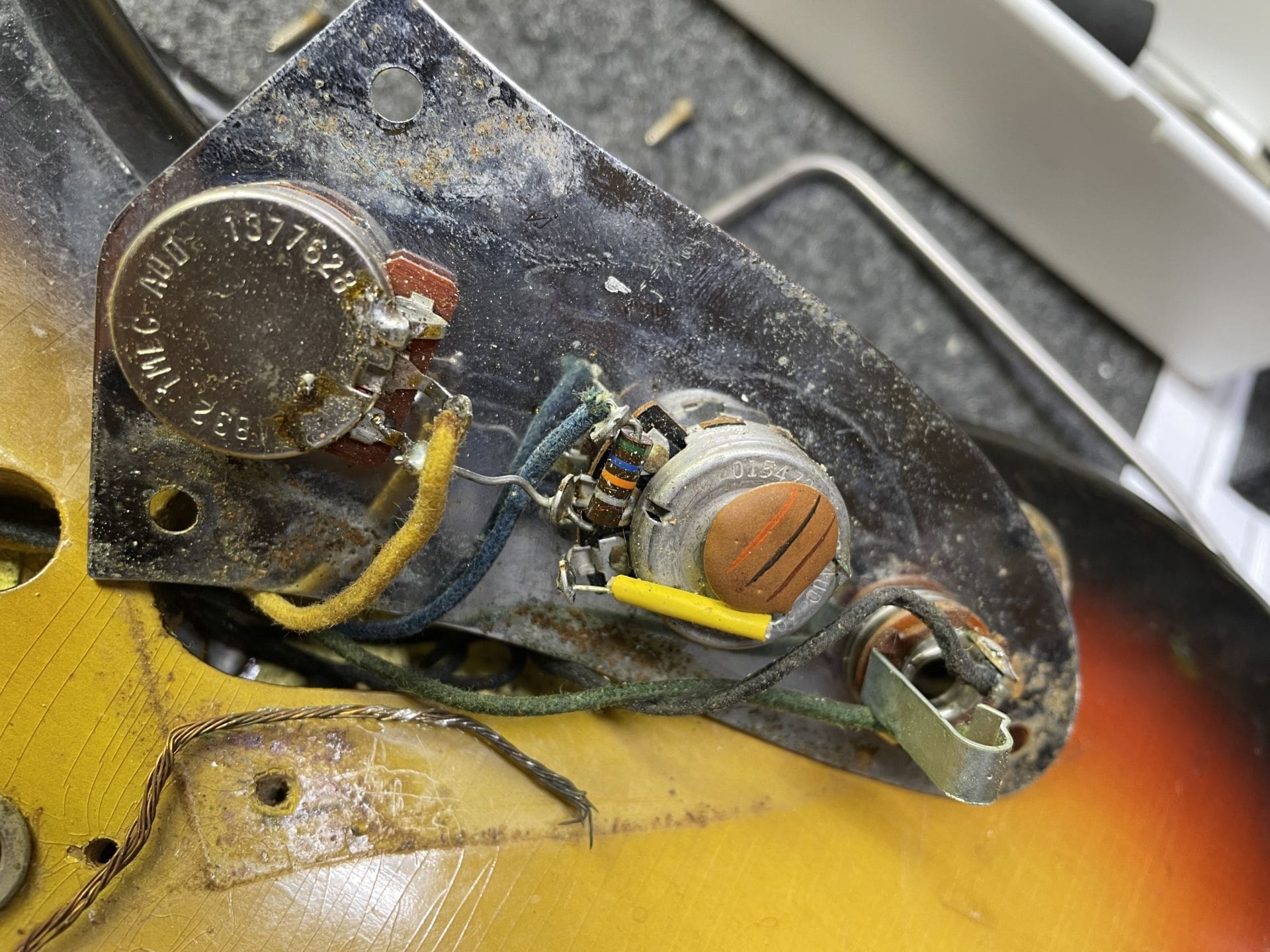

1377628 = 28th week 1976

3046612 = 12th week 1966

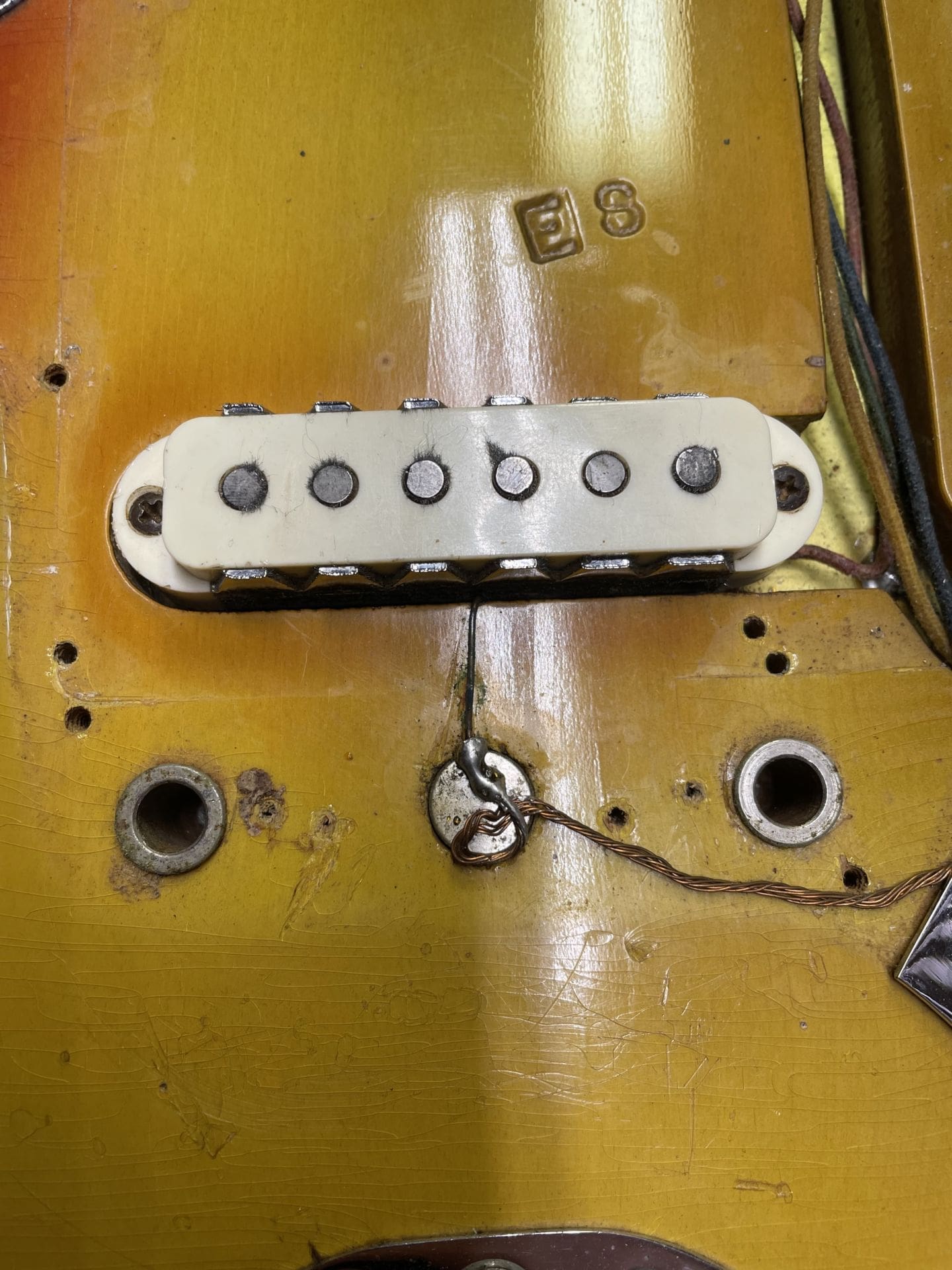

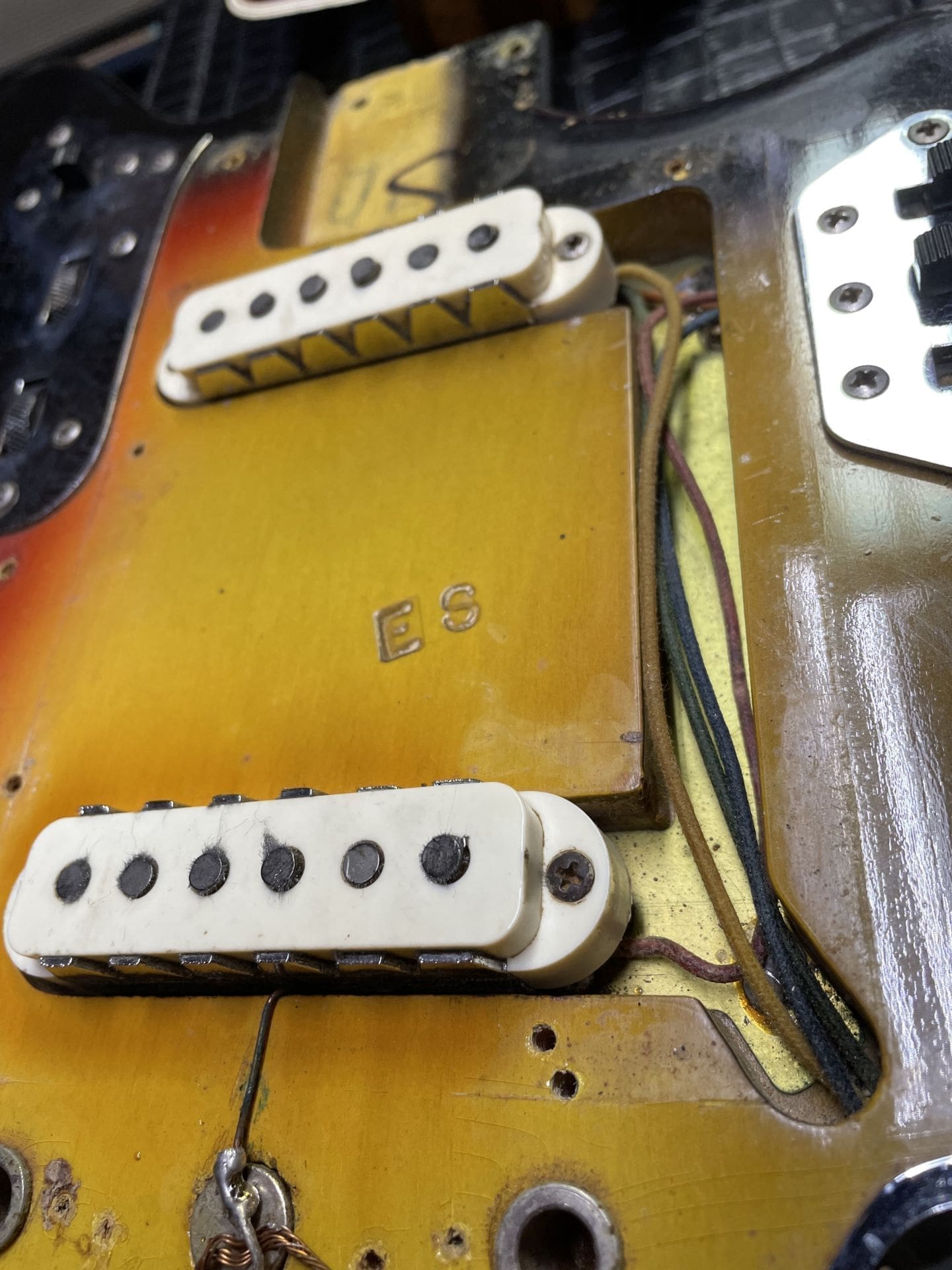

“DEMO” stamped on neck and body and “ES”  on body.  Often thought that indicated NAMM show piece or a salesman’s demo model

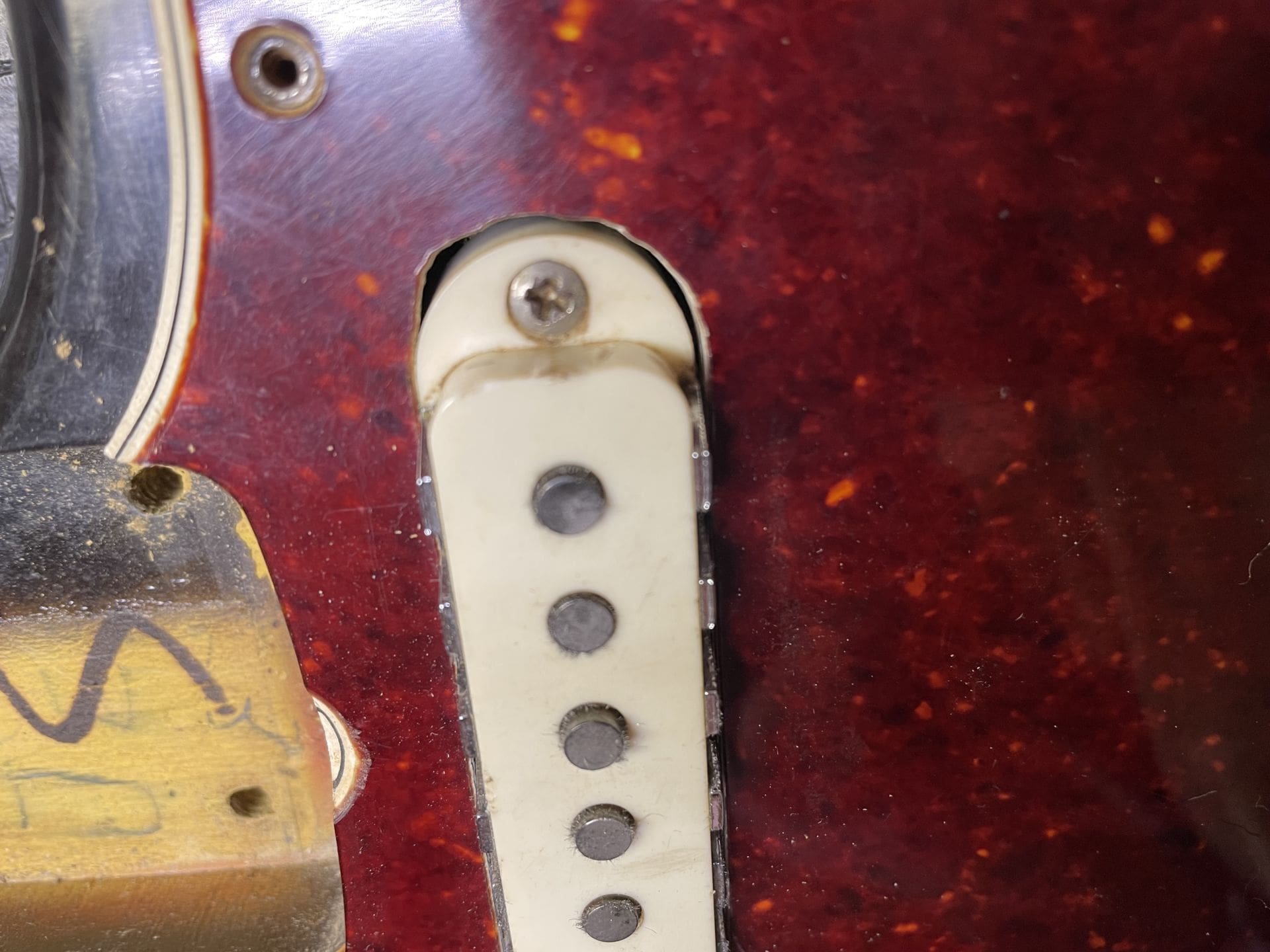

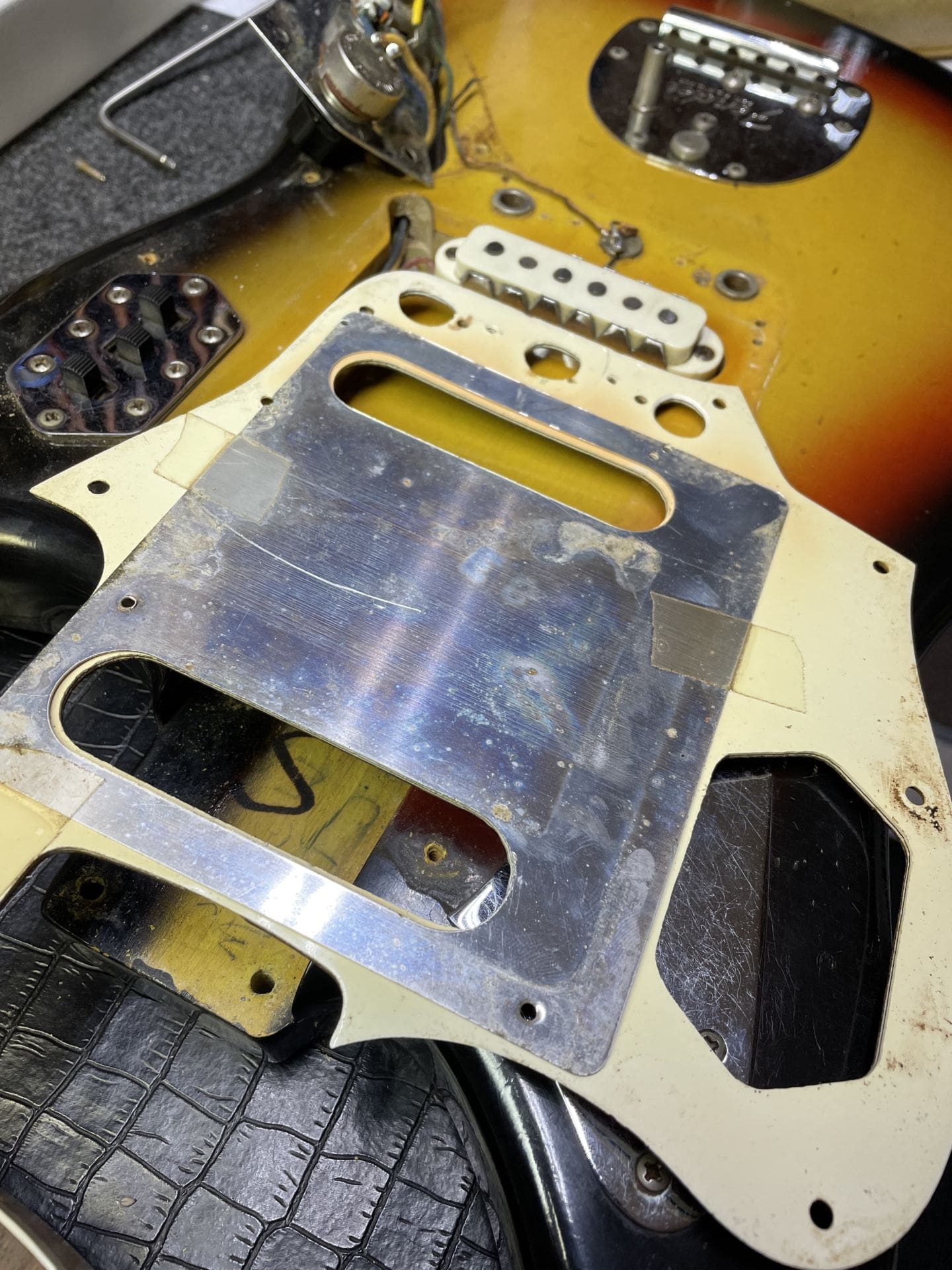

Pick guard slightly enlarged at neck pickup

Missing the mute

For International Shipping Please Contact Us!

Located in our Studio City Shop
